Export endogenous model data

This step exports the results (endogenous variable values) of the solved numerical problem(s) to the model’s SQLite database. This enables further analysis, reporting, or comparison of results across scenarios.

Overview

• Exports solved endogenous variable data from the in-memory model to the SQLite database.

• Can export results for all scenarios or for a specified subset.

• Supports overwriting existing results and suppressing warnings as needed.

• Ensures that results are only exported if the model has been successfully solved.

API: load_results_to_database()

Typical Usage

import cvxlab

# Previous steps:
# - Create model directory and setup files
# - Create Model instance
# - Fill sets data (coordinates)
# - Initialization of data structures
# - Fill input data Excel file(s)
# - Initialization of numerical problem(s)
# - Solve the numerical problem(s)

# [CURRENT STEP] Export all results to the database
model.load_results_to_database(...)

Parameters description

Parameter	Description	Default
scenarios_idx	A single scenario index or a list of scenario indices to export. If None, results for all scenarios are exported.	None
force_overwrite	If True, overwrites existing results in the database without confirmation.	False
suppress_warnings	If True, suppresses warnings during export, for example in case of re-exporting unchanged numerical values.	False

Workflow

When load_results_to_database() is called on a Model instance:

• Checks if the model has been solved (i.e., results are available). If not, logs a warning and aborts export.

• For each scenario (or the specified subset), exports the solved endogenous variable values to the SQLite database.

• If force_overwrite is True, existing results in the database are replaced.

• If suppress_warnings is True, any warnings during the export are suppressed.

SQLite database inspection

Once the results are exported, the SQLite database can be inspected with different tools depending on the analysis workflow.

Approach 1: direct database inspection

For quick inspection, table browsing, or ad hoc SQL queries, the database can be opened directly with tools such as:

• Visual Studio Code, using a SQLite extension.

• SQLiteStudio.

This approach is useful when the goal is to inspect table contents, verify the exported data, or run custom SQL queries directly on the database.

Approach 2: Business Intelligence software

The SQLite database can also be connected to business intelligence software for reporting and interactive analysis. One possible workflow is to import the database into Power BI. Requirements:

• Power BI Desktop

• a SQLite ODBC connector, for example SQLite ODBC Driver

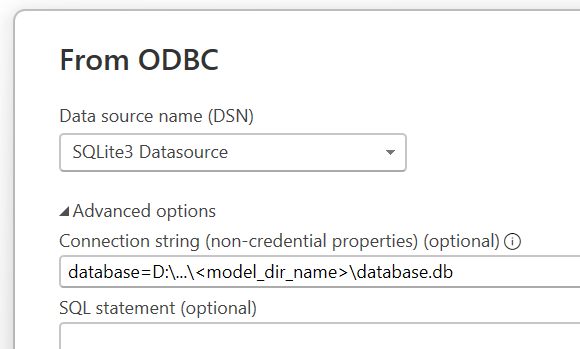

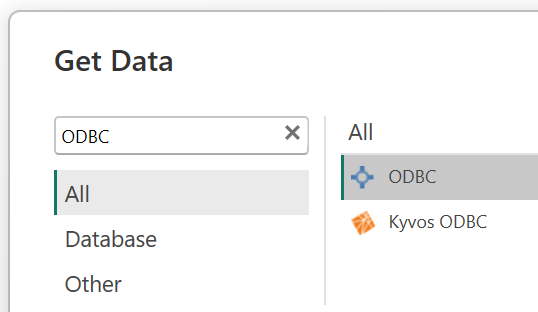

After installing both tools, the SQLite database can be imported into Power BI together with all its tables. In Power BI desktop, from the Get Data menu, select ODBC, then choose the SQLite ODBC data source and select the database file (see figures below).

Once imported, the tables will be available in Power BI for building reports, visualizations, and performing further analysis. In typical cases, the database relational structure is recognized during import, so the model is immediately available for further inspection with DAX measures, calculated columns, and standard Power BI reports.
